Terminal Lug, detecting overheat

Overheat can be visually checkedby naked eyes without any equipment!

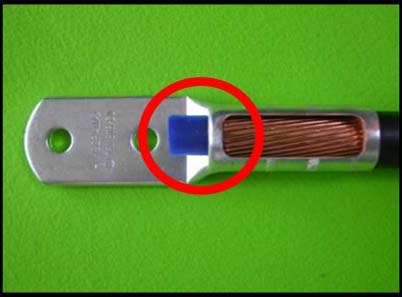

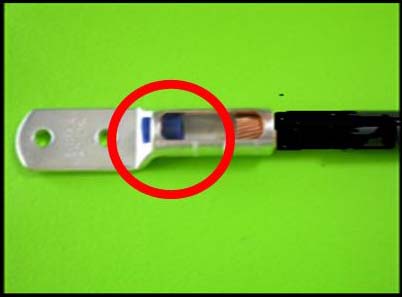

» Visual inspection whether the cable conductor is tightly inserted into the lug for no risk for arc generation

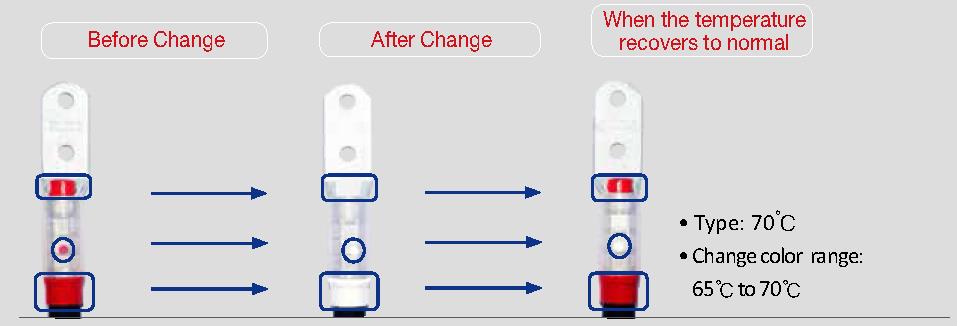

» Visual inspection by color tab, detecting overheat on the cable

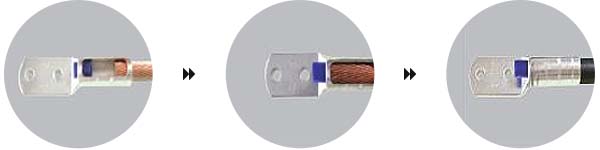

» Anybody can check its cable connection and overheat by glace without any equipment

 · UL 486A-486B and CSA C22.2 No. 65-13, Wire Connectors

  • insulation cap resposive to overheat img1
  • insulation cap resposive to overheat img2
insulation cap resposive to overheat img2
insulation cap resposive to overheat img2

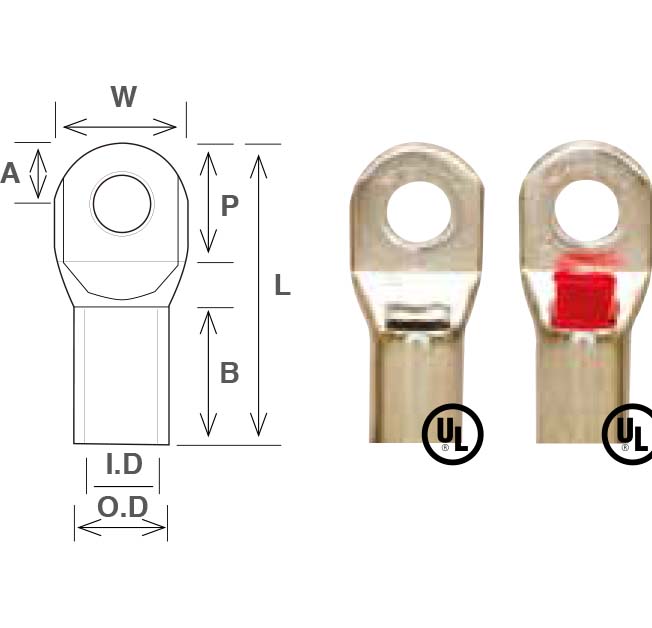

EYECAP-CP-Tubular Terminal Lug-1 Hole
EYECAP-CPT- Tubular Terminal Lug for temperature change-1 Hole

  • img
    (Unit: mm)
    Size(SQ) I.D O.D L B W P A Hole(PI)
    6-1H 4.0 5.6 22 9.5 9.5 11.05.3 5.5ø
    10-1H 4.5 6.6 29.0 13.011.513.06.2 6.5ø
    16-1H 5.4 7.4 31.0 13.012.015.07.0 6.5ø
    25-1H 6.7 9.0 37.0 15.013.018.08.0 8.4ø
    35-1H 8.1 10.543.0 17.015.021.010.010.4ø
    50-1H 9.5 12.048.0 20.017.022.010.010.4ø
    70-1H 11.314.555.0 23.021.025.013.010.4ø
    95-1H 13.517.061.0 25.024.528.013.013.0ø
    120-1H 15.219.064.0 28.028.528.014.013.0ø
    150-1H 17.021.075.0 32.030.533.015.013.0ø
    185-1H 19.023.580.0 34.034.034.015.013.0ø
    240-1H 22.028.087.0 38.040.036.016.013.0ø
    300-1H 24.030.5100.043.044.043.019.013.0ø
    400-1H 26.034.0109.050.048.045.019.013.0ø
    tolerance ±0.1±0.1±0.5 ±0.5±0.5±0.5±0.5±0.5
    Example for Part Number
    EYECAP-CPT (1H) 25BK
    ③②①

    ① TYPE : (1H)
    ② SIZE : 6SQ ~ 400SQ
    ③ COLOR : BK(Black)

    ※T - Average thickness ±10%. All other dimensions are restricted to ±15% tolerance. Specification may change without prior notification for better performance.

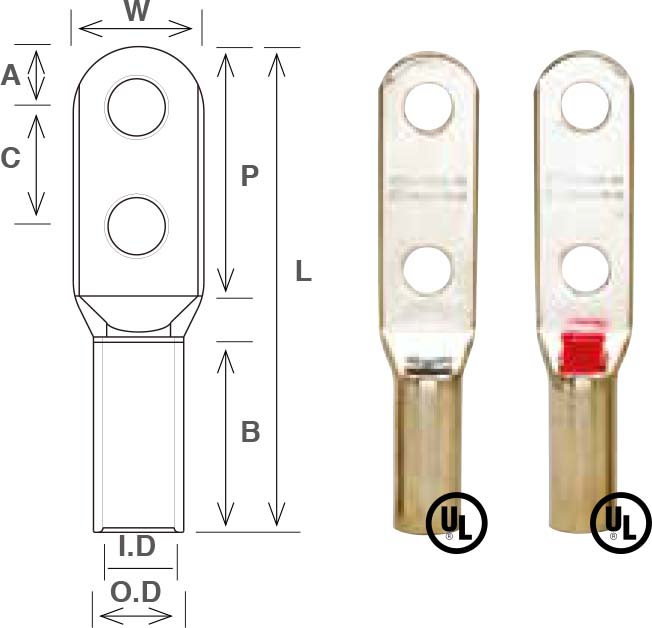

EYECAP-CP-Tubular Terminal Lug-1 Hole
EYECAP-CPT- Tubular Terminal Lug for temperature change-1 Hole

  • img
    (Unit: mm)
    Size(SQ)I.D O.D L B W P C A Hole(PI)
    25-2H 6.7 9.0 95.0 27.013.064.045.09.0 8.4ø
    35-2H 8.1 10.599.0 30.015.064.045.09.0 8.4ø
    50-2H 9.5 12.0109.030.017.073.045.012.010.4ø
    70-2H 11.314.5115.035.021.074.045.014.013.0ø
    95-2H 13.517.0124.038.024.578.045.015.013.0ø
    120-2H 15.319.0130.044.028.578.045.015.013.0ø
    150-2H 17.021.0135.047.030.578.045.015.013.0ø
    185-2H 19.023.5141.051.034.078.045.016.013.0ø
    240-2H 22.028.0150.056.040.081.045.016.013.0ø
    300-2H 24.030.5164.066.044.084.045.016.013.0ø
    400-2H 26.034.0174.072.048.088.045.019.013.0ø
    500-2H 31.040.0180 73.057.088.045.019.013.0ø
    tolerance ±0.1±0.1±0.5 ±0.5±0.5±0.5±0.5±0.5±0.5
    Example for Part Number
    EYECAP-CPT (2H) 25BK
    ③②①

    ① TYPE : (2H)
    ② SIZE : 25SQ ~ 500SQ
    ③ COLOR : BK(Black), R(Red),B(Blue),Y(Yellow), G(Green)

    ※T - Average thickness ±10%. All other dimensions are restricted to ±15% tolerance. Specification may change without prior notification for better performance.
