Cable Connectors

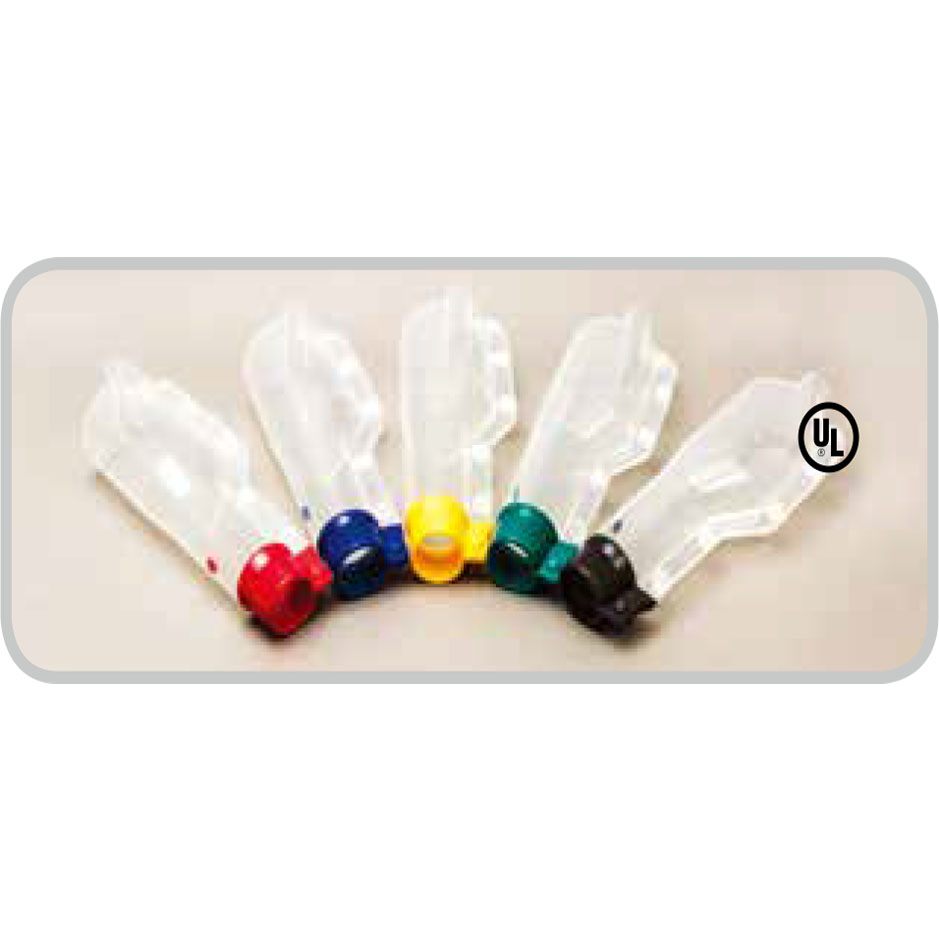

Terminal Insulation Cover

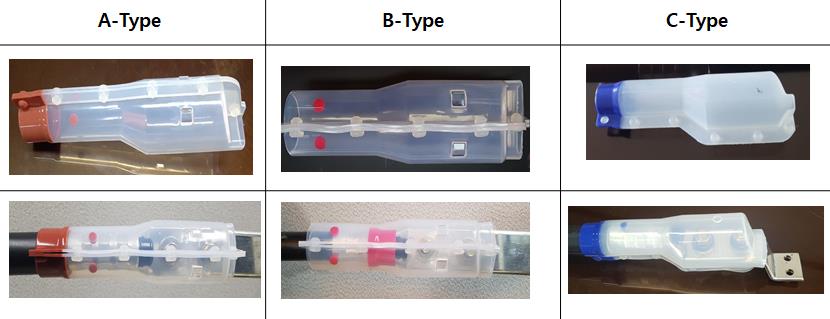

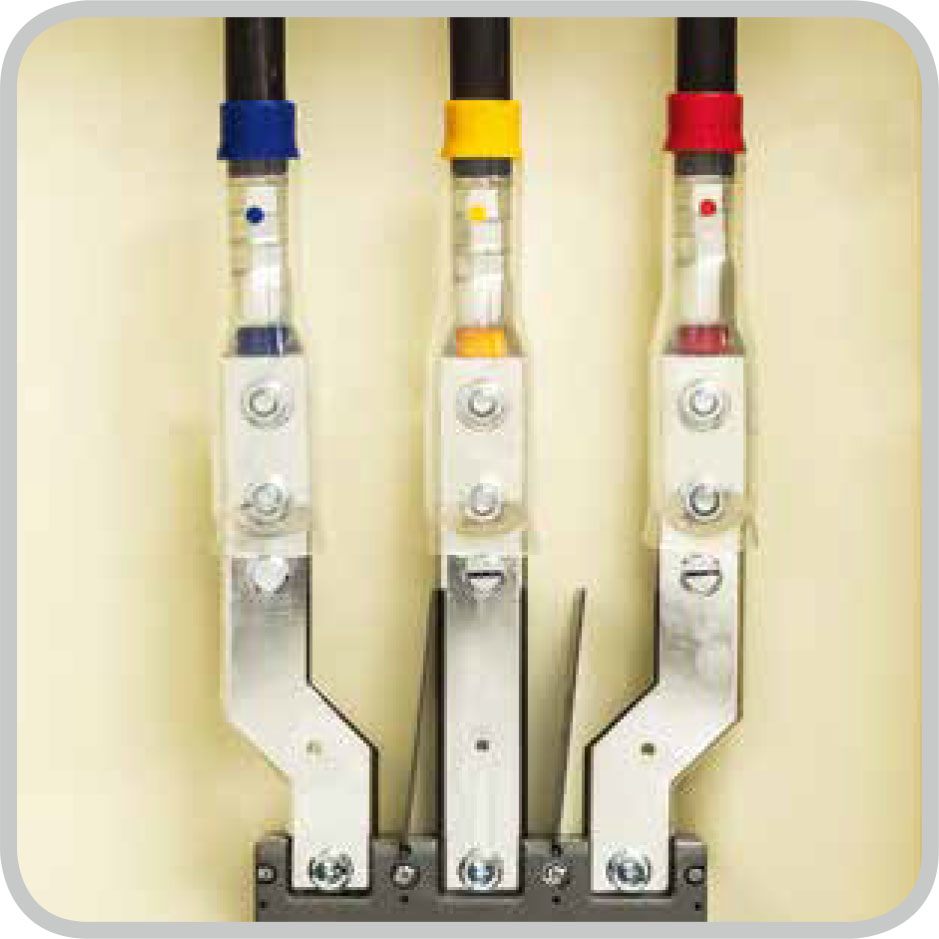

Terminal Cover as longer sleeve to cover bus bar
» Anybody can detect overheat by checking the color change without equipment.
» Silicone guarantees no harmful material and no toxic gas, it is saving lives.
» More security with less electrical shock during installation and maintenance on top of Fire prevention by detecting overheat
» More security by protecting insects inside the terminal cover, preventing blackout due to short circuit/ground fault
-

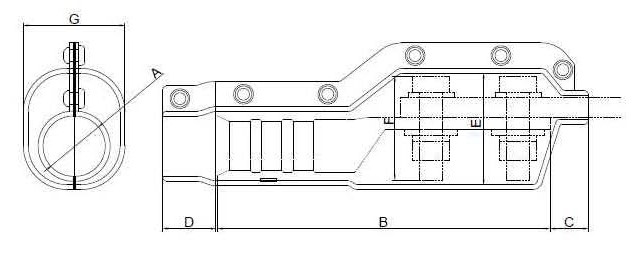

SIZE A B C D E F G REMARKS 400 30.82 174 10 25 57 47.8 45.6 TIGHT APPLICATION.
Dimension will be upgraded soon300 30.82 174 10 25 57 47.8 45.6 240 25.8 155 10 25 52 42.2 42 180 23.2 146 10 24.25 52 47.2 40 150 21.4 146 10 24.25 52 47.2 40 120 18.94 135 10 17.5 52 47.2 32 95 16.85 135 10 17.5 52 47.2 32
A. outer diameter of cable;inner diameter of terminal cover
B. length of lug
C. from end of lug to bolt of bus bar
D. length of insulating cap
E. height of terminal cover
F. length of bolt
G. width of terminal cover
